  • MÁY NÉN KHÍ CAO ÁP SVB 1300/350

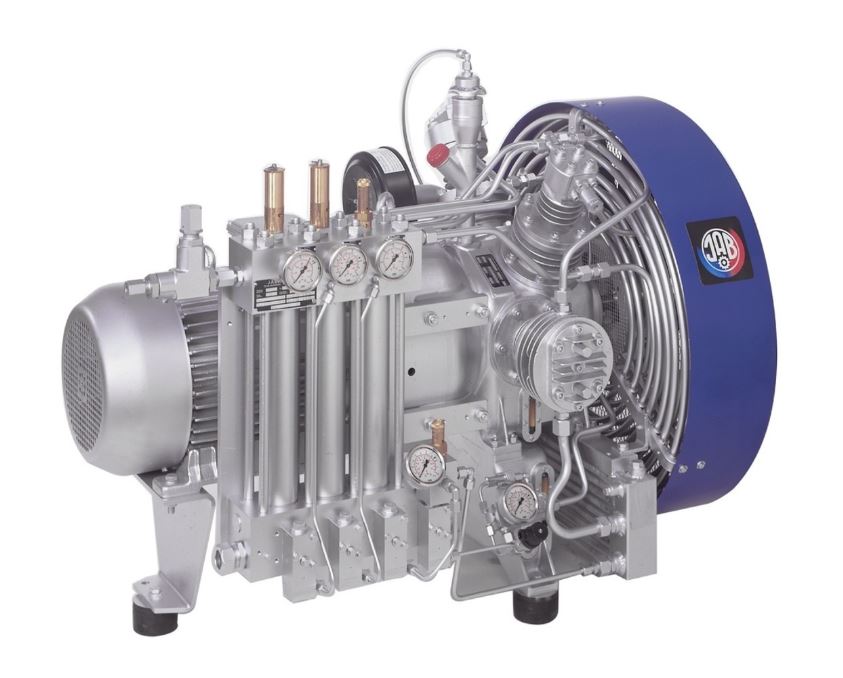

MÁY NÉN KHÍ CAO ÁP SVB 1300/350

MÁY NÉN KHÍ CAO ÁP SVB 1300/350

Hãng sản xuất: JAB

Model máy: SVB 1300/350

Ứng dụng: Nén không khí
Áp lực làm việc max: 350 bar
Cấp nén: 3 cấp
Công suât: 37 kW
Lưu lượng: 1390 L / phút
Vòng quay: 1500 rpm

Air-Compressor high-pressure SVB 1300/350

Description

Description

A higher volumetric efficiency and alignment of the cylinders directly in the cooling-air flow are the pre-conditions for low condensation temperatures and therefor long service life of the valves. The generously dimensioned industrial components guarantee long inspection intervals and low maintenance costs. A special system for leakage testing of the whole machine during standstill (without running noises) simplifies the diagnosis during maintenance work.

Compressor:

  • Type-tested safety valves and manometers for all pressure stages
  • High efficient cooling
  • Maintenance-free oil- and water-seperator
  • Energy efficient IE3 motor, direct flanged
  • Elastic coupling for smooth start
  • Manometer for all stages and oil-pressure
  • Oil-pressure-lubrication with oil-pressure-contorl
  • Oil-pressure-controlled automatic discharge
  • Vibration-free assembly
  • Electromagentic start discharge

Compressor unit:

  • Compressor
  • PLC Control
  • Pressure sensor for end-pressure
  • End-temperature-control
  • Flexible hoses
  • Ready mounted and wired on common base

Optional equipment:

  • Microfilter at outlet
  • Temperatur-contorl of all pressure stages
  • Compressor-heating
  • Sound insulation hood
  • Condensate tank for wall mounting

Technical data

Application, medium Luft / Air
Max. operating pressure 350 bar
Stages 4
Delivery quantity 1390 l/min
Driving power 37 kW
Drive speed 1500 rpm
Cylinder count 4
Operating temperature 5 - 40 °C
Noise level 90 dB (A)
Length 1570 mm
Width 1050 mm
Height 1085 mm
Weight 690 kg
Outlet temperature ca. 10 °C über Eingangstemperatur
  • Manufacturer Article No.: SVB1300/350
