Comparisions
|
Oil-free
Scroll Air Compressor
|
Oil-free
Piston Air Compressor
|
Oil-free SCROLL Air Compressor
|
 Oil-free PISTON Air Compressor |
| Only one moving part
Low Vibration and Noise
Four times lifetime compared with Piston
|
The pistons rise and fall
Causing too much vibration and Noise
Short Service lifetime
|
| 100% Volumetrically efficient
All the intake air is compressed and moved through the exhaust side.
|
There is De-ration in Capacity
Due to wear and tear in cylinder crank case, piston rings, pistons and valves.
|
Parameters
Classic models Series (1~10 Air-end)
1.5kW~37kW Oil-free Scroll type Air Compressor
|
Looks
|
Model
|
FAD
M³/min
|
End
quantity
|
Noise
dB (A)
|
Dimensions (LxWxH)mm
|
Weight
|
|
|
AP1.5-8B
|
0.14
|
1.5×1
|
51±3
|
540×540×1190
|
136
|
|
AP2.2-8B
|
0.24
|
2.2×1
|
53±3
|
540×540×1190
|
142
|
|
AP3.7-8B
|
0.41
|
3.7×1
|
55±3
|
540×540×1190
|
149
|
|
|
AP1.5-8A
|
0.14
|
1.5×1
|
51±3
|
540×540×770
|
87
|
|
AP2.2-8A
|
0.24
|
2.2×1
|
53±3
|
540×540×770
|
93
|
|
AP3.7-8A
|
0.41
|
3.7×1
|
55±3
|
540×540×770
|
110
|
|
Looks
|
Model
|
FAD
M³/min
|
End
quantity
|
Noise
dB (A)
|
Dimensions (L×W×H)mm
|
Weight
|
|
|
AP7.5-8A
|
0.82
|
3.7×2
|
60±3
|
1000×590×976
|
227
|
|
AP11-8A
|
1.23
|
3.7×3
|
61±3
|
1250×700×1171
|
338
|
|
AP15-8A
|
1.64
|
3.7×4
|
62±3
|
1235×740×1630
|
585
|
|
AP18.5-8A
|
2.05
|
3.7×5
|
62±3
|
1235×740×1990
|
660
|
|
AP22-8A
|
2.46
|
3.7×6
|
60±3
|
1580×1235×1630
|
910
|
|
AP30-8A
|
3.28
|
3.7×8
|
61±3
|
1140
|
|
AP37-8A
|
4.10
|
3.7×10
|
62±3
|
1580×1235×1990
|
1470
|
New models in 2023 (1~6 Air-end)
3.7kW~45kW Oil-free Scroll type Air Compressor
|
Looks
|
Model
|
FAD
M³/min
|
End
quantity
|
Noise
dB(A)
|
Dimensions (L×W×H)mm
|
Weight
|
|
|
AP3.7-8AJ
|
0.41
|
3.7×1
|
50±3
|
680×540×950
|
130
|
|
AP5.5-8A
|
0.6
|
5.5×1
|
60±3
|
660×750×1200
|
175
|
|
AP7.5-8A
|
0.8
|
7.5×1
|
60±3
|
180
|
|
Looks
|
Model
|
FAD
M³/min
|
End
quantity
|
Noise
dB(A)
|
Dimensions (L×W×H)mm
|
Weight
|
|
|
AP11-8C
|
1.2
|
5.5×2
|
61±3
|
1250×700×1171
|
338
|
|
AP15-8C
|
1.6
|
7.5×2
|
62±3
|
350
|
|
AP16.5-8C
|
2.0
|
5.5×3
|
62±3
|
1250×700×1602
|
540
|
|
AP22-8C
|
2.4
|
7.5×3
|
63±3
|
850
|
|
AP30-8C
|
3.2
|
7.5×4
|
64±3
|
900
|
|
AP37-8C
|
4.0
|
7.5×5
|
65±3
|
1230×1700×1602
|
1004
|
|
AP45-8C
|
4.8
|
7.5×6
|
65±3
|
1116
|
All-in-one product can be provided
- Note 1. Post-treatment equipment such as air tank, refrigerating dryer/Adsorption dryer and filters can be built in.
- Note 2. Saving installation space and solve the worries of supporting equipment, ensure that the product is ready to use once it is started.
- Note 3. Various types of machine with power of 1.5~45kW and air volume of 140~4800L/min can be customized.

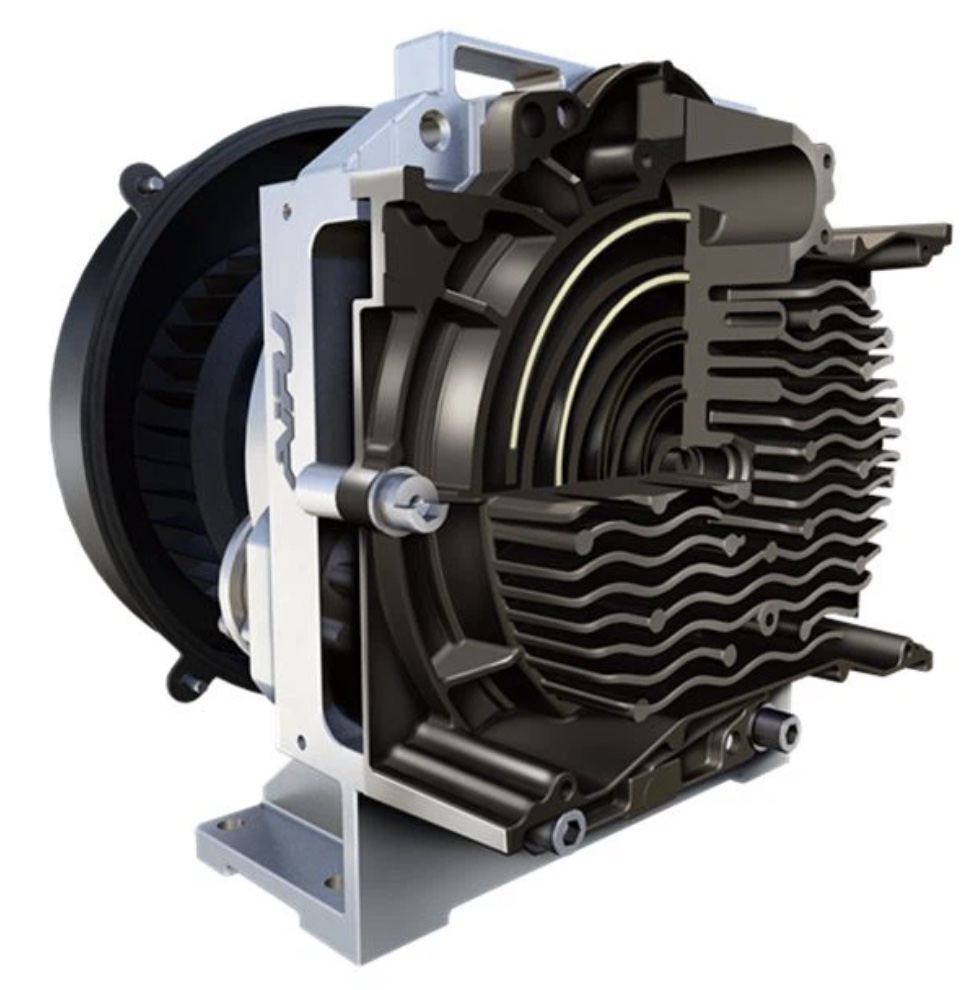

AIR END
1.5kW~7.5kW Oil-free Scroll Air End
|
Looks
|
Model
|
FAD
M³/min
|
speed
(rpm)
|
dimension (L×W×H)mm
|
Weight
(kg)
|
|
|
AP1.5
|
140
|
2800
|
318×357×293
|
16
|
|
AP2.2
|
240
|
3000
|
324×357×293
|
17
|
|
AP3.7
|
410
|
3200
|
360×357×301
|
21
|
|
AP5.5
|
610
|
2800
|
430×435×365
|
39
|
|
AP7.5
|
800
|
3100
|
430×447×365
|
41
|
