All In One Permanent Magnet Serial TPMTD

Origin: TYPHOON - EU

Code: TPMTD

Model: TPMTD

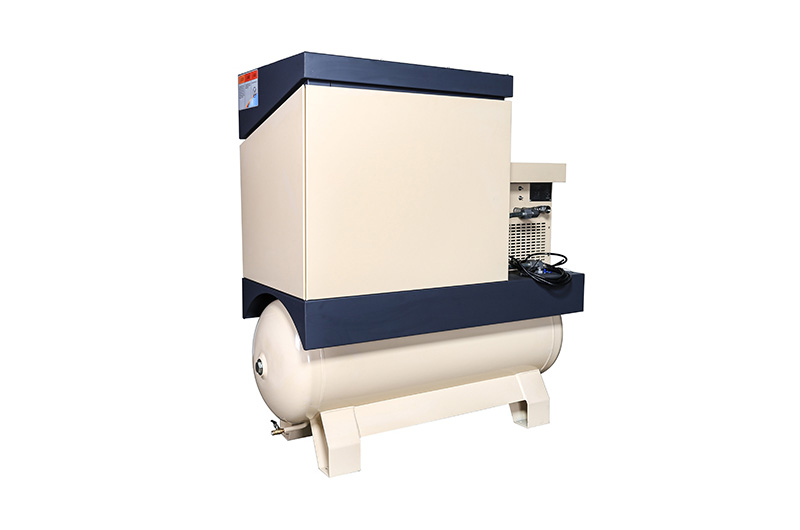

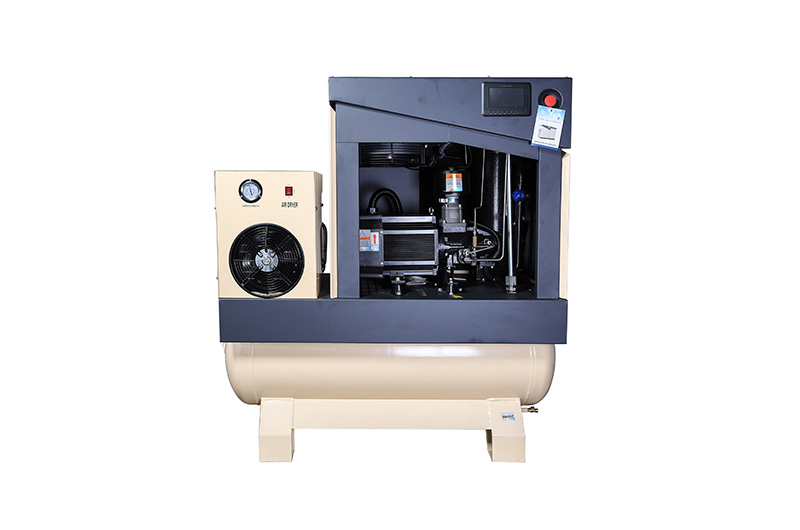

All In One Permanent Magnet Serial TPMTD.
- Power: from 5.5 KW (7.5HP) - 22 KW (30HP)
- Working pressure: 4.5Kg/cm2 - 15Kg/cm2
- Flow: from 0.3 - 3.5 m3/min
- Cooling by wind
- Working temperature: 0 - 45 oC
- Voltage: 380V/3phase/50Hz
- Boot method: Soft VSD, PID..
- Built-in cold core separation air dryer: 3-5 oC
- 350 - 500L compressed air tank
- Suitable for factories, narrow workshops, garages, laser...

Product Information
Comment

Permanent magnet variable speed all in one compressor provides a complete solution to produce clean and dry compressed air.

Product Advantages

Permanent magnet motor

No electric excitation, no fundamental wave iron, less copper loss and less calorific value, whose efficiency is 5-12% higher than that of the same capacity asynchronous motor.

Frequency inverter

High performance frequency inverter makes the operation more stable and carrying out real-time vector calculation according to different air delivery.

PLC

7-inch color screen, touch operation, sensitive action, be equipped with active protection, alarming, maintenance reminding and automatic 24-hour unattended operation.

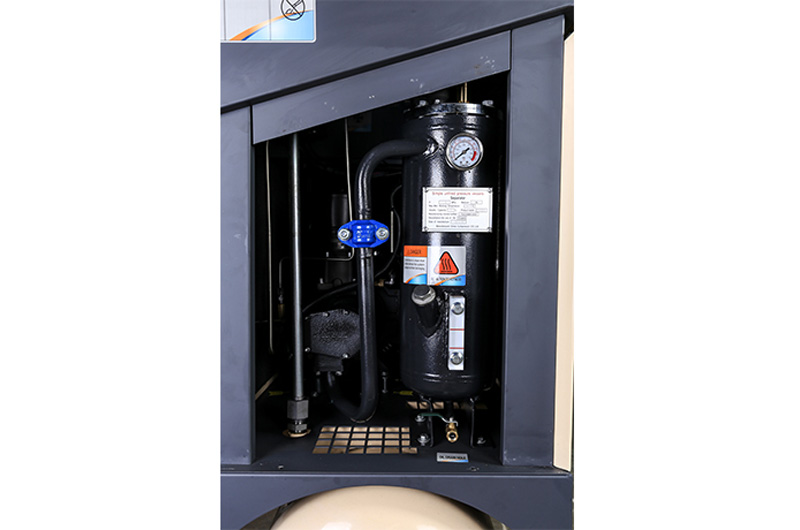

Oil & Air separator

Bigger oil and air separator and oil separator element, improving the initial separation efficiency, making the oil content less than or equal to 3ppm.

Oil filter

Oil filter fitness is 25um, which can effectively guarantee the clean lubricating oil supply to the main system and improve the service life of the air end.

Cooling fan

High efficiency and large air volume, greatly lower the temperature and prelong the lubricating oil change period.

Air tank

Compressor with air tank combined, the exhaust from the compressor is directly discharged to the tank, which reduces the intermediate connecting pipe and effectively saves space.

Product Parameter

TPMT - TPMTD SERIES TECHNICAL SPECIFICATION
Model	Power		Pressure	Capacity	Dimensions	Weight	Outlet Pipe	Noise Level	Tank Volume
Model	KW	HP	bar	M3/min	(LxWxH) mm	Kg	Diameter	dB	L
TPMT7.5A	5.5	7.5	8	0.80	1230x600x1530	300	G3/4	65	300
			10	0.70
			13	0.60
TPMT10A	7.5	10	8	1.10	1230x600x1530	300	G3/4	65	300
			10	1.00
			13	0.80
TPMT15A	11	15	8	1.60	1550x820x1780	350	G3/4	65	300
			10	1.45
			13	1.30
TPMT20A	15	20	8	2.30	1550x820x1780	350	G3/4	65	300
			10	2.00
			13	1.74
			15	1.50
WITH AIR TANK, DRYER AND FILTER
TPMTD7.5A	5.5	7.5	7	0.90	1725x660x1625	380	G3/4	65	200/500
			8	0.80
			10	0.70
			13	0.60
TPMTD10A	7.5	10	7	1.05	1725x660x1625	380	G3/4	65	200/500
			8	1.10
			10	1.00
			13	0.80
TPMTD15A	11	15	7	1.68	1880x820x1940	505	G3/4	65	500
			8	1.60
			10	1.45
			13	1.30
TPMTD20A	15	20	7	2.50	1880x820x1940	505	G3/4	65	500
			8	2.30
			10	2.00
			13	1.74
			15	1.50
TPMTD30A	22	30	7	3.52	2100x750x1950	650	G1	75	600
			8	3.36
			10	3.06
			13	2.80
			15	2.20

The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
Recommend frequency 30%-100%.
The above data is based on the standard grid- 380V/ 50HZ.
Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
