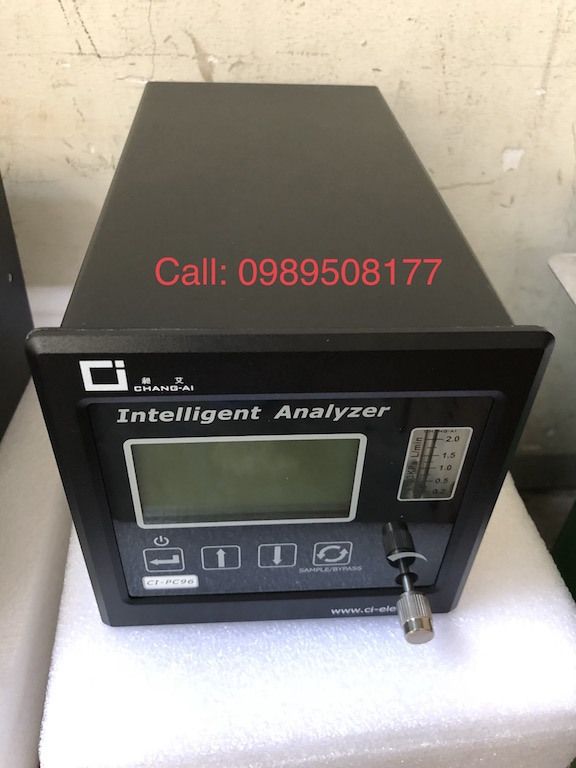

Thiết bị phân tích Oxy CI-PC96V

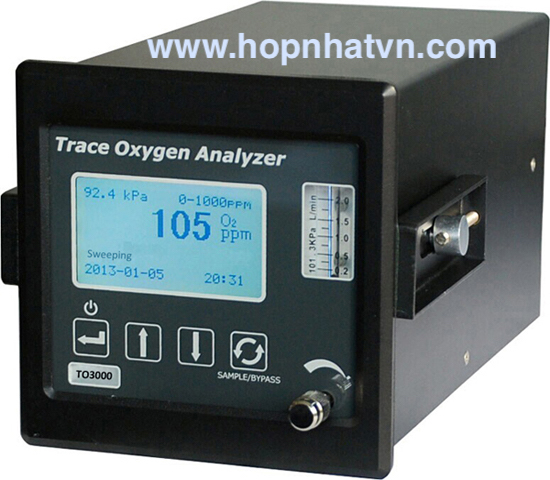

CI-PC96V Process Trace Oxygen Analyzer

Measure Range:                  0-10/100/1000ppm/1% O₂ FS ranges;

Sensor Type:                       Electrochemical fuel cell type;

Accuracy:                             <±1% of FS range under constant conditions;

Application:                         Oxygen analysis from 0.5ppm to 1% in inert, helium, hydrogen, mixed and acid

                                           (CO₂) gas streams;

Approvals:                           ISO9001:2008;

Area Classification:             General purpose

Alarms:                                2 adjustable form C relay contacts non-latching;

Calibration:                          Certified gas of O₂ balance N₂ approximating 80% of range above analysis

                                            range recommended for optinum results; Two points calibration;

Compensation:                   Barometric pressure and temperature; optional heated sample system and

                                            sensor housing;

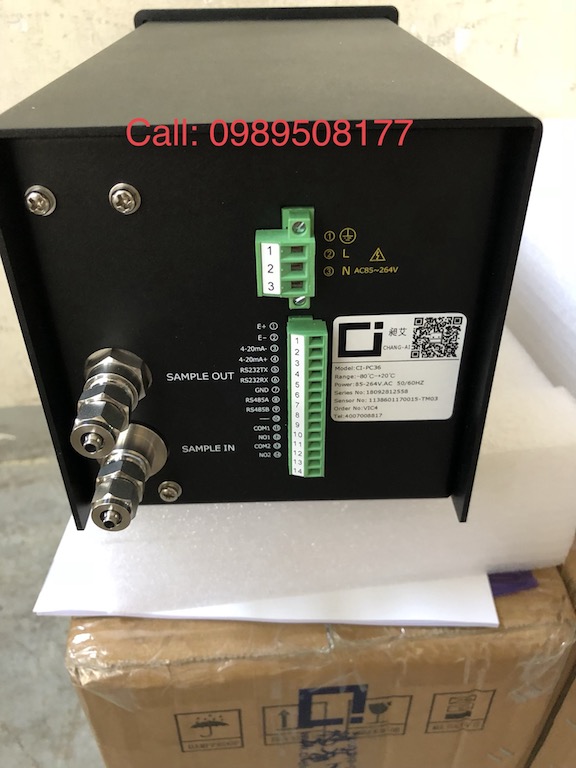

Connections:                       1/4'' or 1/8'' lock type tube fittings;

Controls:                             Menu driven calibration, alarm and system functions;

Data Acquisition:                 Selectable data point intervals;

Display:                               Graphical LCD 128×64MM; resolution 0.01ppm, display pressure, measure

                                            range, real time and date;

Enclosure:                          144(H)×144(W)×251(D)MM;

Flow Sensitivity:                  1~1.5L/min recommended;

Pressure:                            Inlet - regulate to 0.5~2 bar, Vent-atmospheric;

Power:                                Universal: AC110~264V AC, 50/60Hz;

Response Time:                 90% of final FS reading < 10 seconds;

Sample System:                 Flow control and sample/bypass valves; flow indicator;

Sensitivity:                         <0.5% of FS range;

Sensor Life:                        24 months at 25℃ and 1 atm; average O₂ < 1000ppm;

Signal Output:                     4~20mA isolated or 0-10V (optional), etc.;

Temp. Range:                     0~50℃;

Warranty:                            12 months analyzer; 12 months sensor.

• Fast recovery Insta Trace Micro-fuel Cell sensor;

• Screen touch sensing type button operation, unique operation experience;

• Signal output 4-20mA or 0-10V (optional), etc.;

• Two fully-adjustable concentration alarm points with programmable relay function;

• Full duplex RS232 communication port;

• Universal power supply 85-265V AC 50-60Hz;

• Extended-life, maintenance-free sensor;

• ISO 9001 QA System.

• Air separation and liquefaction;

• Pure, gaseous hydrocarbon stream monitoring;

• Semiconductor manufacturing;

• Protective atmosphere blanketing of primary liquid feedstocks and flammable liquids;

• Process monitoring of gaseous monomers-vinyl chloride, propylene, butadiene, isoprene or ethylene;

• Gas purity certification.
