A group of experts, dedicated to developing turbo machinery for more than 20 years, leads and manages TyPhoonCompressor. The company expands the horizon of next-generation environmental industry with direct-coupled and eco-friendly turbo technology. Our products utilize highly efficient energy saving oil-less Air Foil Bearing technology. TyPhoonCompressor's diverse product portfolio will provide the best solution for your municipal or industrial air supply needs. Our turbo machines are a harmonization of extensive R&D experiences and ingenious patented technology. We serve more than 2 billion people in more than 70 countries around the world.
DIVERSE Key Application Areas
INDUSTRIAL / POWER
APulp and paper, carbon black, printing, effluent treatment, fermentation, mechanical vapor recompression, etc.
Flue gas desulphurization, oxidation air and fluidized beds.
WATER AND WASTE WATER TREATMENT
Fine bubble or coarse bubble aeration, basin aeration, soil remediation, MBR/MBBR, deep aeration, grit chamber aeration, filter backwash and other biological treatment
VACUUM APPLICATION
Pharmaceutical, breweries, food and beverage production and other facilities needing clean and oil free environment.
PETROCHEMICAL
Sulfur recovery, sour gas, thermal oxidation or refinery tail gas.
MINING
Iron production, metal refining and metal smelting.
SEMICONDUCTOR
Oil free air compressor for semiconductor and electronic production.
UNBELIEVABLE Reduce your energy costs and Save your precious $$$
|
ENERGY
REDUCTION |
|
Low Vibration Under 1.0 mm/s
Low Noise Under 75dB ± 3dB
Only air filter changes required
Routine maintenance required
OVERWHELMING Core of Excellence
1. Inlet of Motor Cooling Air
2. Permanent Magnet Motor
3. Air Foil Bearing
4. Impeller
5. Parameter Sensing System
The above image illustrates cooling path in a single impeller core. The cutaway image below shows the assembled components of a dual impeller core
1
MOTOR COOLING SYSTEM
PATENT # : 10-1580877 / 10-1607492
TyphoonCompressor's motor cooling system has a patented two-stage cooling structure that can lower the motor temperature more than 10 degrees compared to other brands. The air cools stator, bearing, winding and rotor. The heated air is exhaused outside of the enclosure.
2
MULTI-STAGE COMPRESSED AIR
WH Series is a Multi-Stage compressor directly coupled to a high-speed motor which enables to achieve up to 8 bar.
3
HIGH EFFICIENT PERMANENT MAGNET MOTOR
TyphoonCompressor PM motor is a high efficient (95%) product, which can perform at ultra-high speed ranging from 20,000 to 150,000 RPM.
4
HIGH PERFORMANCE IMPELLER
TyphoonCompressor impellers guarantee high-efficiency with the highest quality. It is made of high strength aluminum alloy (AL7075-T651) that is precisely processed up to 0.001mm thickness.
The impeller, with hard anodizing on the surface with an excellent corrosion and chemical resistance, has excellent performance in hostile environments.
TyphoonCompressor also provides stainless steel and titanium impeller options.
The image on the left shows air foil bearing’s physical condition after 100,000 times of on/off tests.
5
AIR FOIL BEARING
PATENT # : 10-1632356 / 30-0858674
The frictionless characteristic of our oil-less air foil bearing makes it extremely durable. Our bearing has passed On/Off testing of over 100,000 cycles.
6
ON-MACHINE REAL TIME PARAMETER MEASUREMENT
PATENT # : C-2016-006451
The control system, which measures pressure, temperature, and flow rate in real time, controls the VFD and BOV quickly and precisely. Our bell-mouth flow meter can measure the flow within ± 0.5% tolerance (JIS B 8340).
OUTSTANDING Simplified Structure
1. Water resistant enclosure PATENT # : 10-1616274
Patented water resistant enclosure for outdoor applications, a simple overhead canopy and covers on inlet louvers are often all that is required.
2. BOV(Blow Off Valve) PATENT # : 10-1651589
The BOV protects the core from surge during operation and in emergency circumstances. Our patented BOV has a unique design that is operated by internally generated differential pressure without supply of external compressed air.
3. Rotor Locking Device PATENT # : 10-1791977
All TyphoonCompressor machines are shipped with our patented rotor locking device. This is to minimize any damage during transportation and installation period.
4. Control Panel
The Control Panel can utilize either a PLC or MICOM controller, based on customer preference. For PLC, TyphoonComopressor offers Allen-Bradley, SIEMENS, RS-AUTO and LG brands. The control panel can be connected remotely to plant SCADA via Ethernet, RS485 or RS422.
5. User Interface Panel
All TyphoonCompressor control systems use either a 7 or 10 inch touch screen so that users can easily and precisely control operational targeting values and control parameters . Four operation switches (RUN, LOAD, STOP, EMERGENCY) allow proper operation during normal and emergency conditions.
6. VFD Cooling System
TyphoonCompressor blowers use UL/CE certified VFD from well known industry suppliers to run the high-speed motor. VFD Cooling Air can be either passed from the electrical compartment into the core compartment (Type A), or it can be ducted to the outside of the enclosure (Type B). The image to the right depicts the Type A cooling system.
7. Suction / Process Air Filtering System
Intake air passes through a non-woven free-filter and a pleated main air filter (combined minimum efficiency 85%) to effectively remove potentially harmful contaminants. The filter can be replaced easily even during operation.
TROUBLE-FREE & SAFE No Matter How Complex
TWO YEARS GUARANTEE
EASY OPERATION AND MAINTENANCE
LOW NOISE (UNDER 80dB +/- 3dB)
HIGH SPEED VFD (VARIABLE SPEED DRIVER) CONTROL
PLC CONTROL AND SCADA INTERFACE (INTEGRATED CONTROL FOR REMOTE MONITORING AND OPERATION)
100% OIL-FREE (ECO-FRIENDLY)
ENERGY SAVING UP TO 57%
EXTREMELY LOW VIBRATION (BELOW 1.0mm/s)
RELIABLE GLOBAL REFERENCE WITH STRONG CUSTOMER SATISFACTION
More than 2 Billion People in 70 Countries benefit from our machine
WIDE Product Range

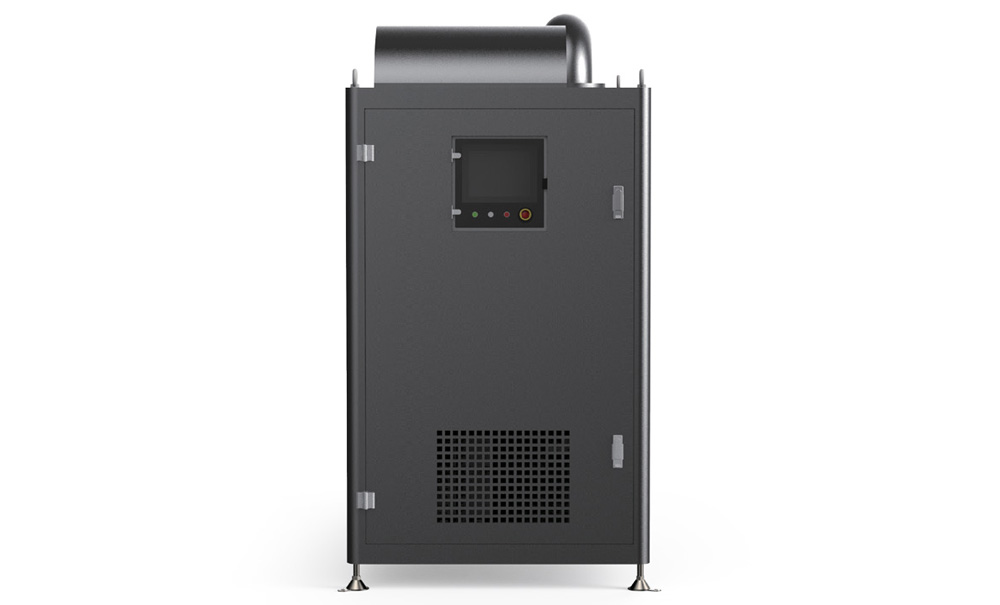

WH SERIES Turbo Compressor
HIGH EFFICIENCY TURBO MACHINARY: MULTISTAGE AIR COMPRESSOR, HIGH SPEED MOTOR, CONTACTLESS AIR BEARING, VARIABLE SPEED AND DIRECT DRIVING
|
Featured Model
WH300-40
|
|
Flow
|
12~1270 m3/min
|
The WH Series is TyphoonCompressor's premium next-generation multi-stage turbo compressor with Air foil Bearing Technology. TyphoonCompressor has broaden its line-up range up to 8 bar which makes it capable of building pressure from 1.5 to 8 bar typically reserved for industrial compressors. WH Series applications include deep tank aeration in wastewater treatment plants, production process air in chemical, textile, food & beverage, petrochemical, glass manufacturing plants, air knife applications in semiconductor manufacturing and other industrial medium-to-high pressure applications. This product is the best solution for energy saving application which requires low carbon footprint.
|
|
Pressure
|
1.5~8.0 kgf/cm2
|
|
Noise
|
80dB ± 3dB
|
|
RPM
|
24,000 ~ 55,000
|
|
System
|
100% Oil-less system
|
|
Life Cycle
|
Semi-Permanent
|
TURBO BLOWER WH SERIES 50~400HP [1.5~8.0 BAR]
WH50
WH75
WH100
WH150
WH200
WH300
WH400
| SPECIFICATION |
|
WH50 |
WH70 |
WH100 |
WH150 |
WH200 |
WH300 |
WH400 |
| |
|
DISCHARGE
PRESSURE (mmAq) |
Tolerance of air flow rate ±5% |
| AIR FLOW RATE (m3/min) |
AIR COOLING |
1.5 |
16 |
24 |
32 |
48 |
65 |
96 |
127 |
| |
2.0 |
12 |
18 |
25 |
37 |
50 |
75 |
100 |
| WATER COOLING |
4.0 |
- |
- |
18 |
- |
36 |
55 |
72 |
| |
8.0 |
- |
- |
12 |
- |
24 |
36 |
48 |
| SHAFT POWER (hp) |
|
|
50 |
75 |
100 |
150 |
200 |
300 |
400 |
| EXHAUST PIPE (mm) |
|
1.5 |
100 |
125 |
150 |
150 |
200 |
250 |
250 |
| |
2.0 |
100 |
100 |
125 |
150 |
150 |
200 |
250 |
| |
4.0 |
- |
- |
100 |
- |
150 |
200 |
200 |
| |
8.0 |
- |
- |
100 |
- |
125 |
150 |
150 |
| DIMENSION (mm) |
|
W |
750 |
850 |
850 |
1,050 |
1,050 |
1,500 |
1,500 |
| |
L |
1,700 |
1,850 |
1,800 |
2,100 |
2,100 |
2,500 |
2,500 |
| |
H |
1,250 |
1,450 |
1,450 |
1,700 |
1,700 |
2,000 |
2,000 |
| WEIGHT (kg) |
|
|
600 |
750 |
800 |
1,100 |
1,300 |
1,800 |
2,500 |
| SOL V/V |
|
|
65 |
65 |
40 |
125 |
50 |
65 |
80 |
| FUSE, BREAKER (Amphere) |
|
|
100 |
150 |
200 |
300 |
350 |
500 |
630 |
