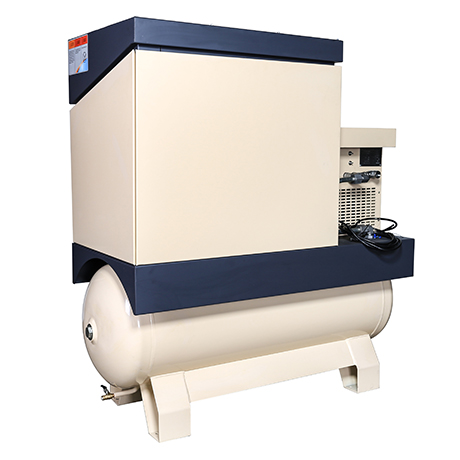

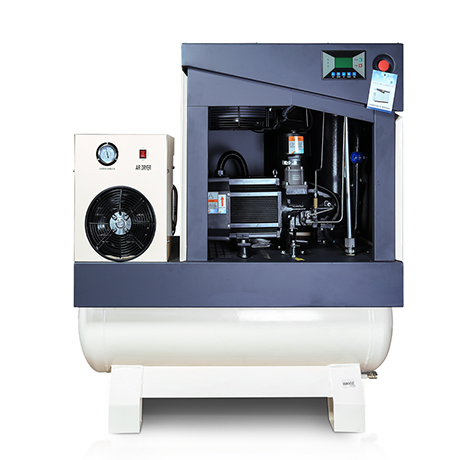

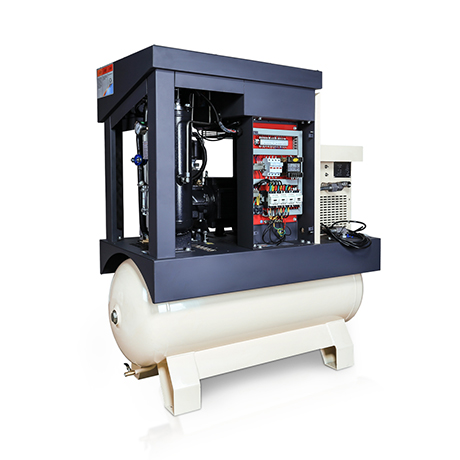

All In One Fix Speed Serial TFSTD

Hãng sản xuất: TYPHOON - EU

Mã số: TFSTD

Model máy: TFSTD

All in one serial provides a complete solution to produce clean and dry compressed air.

Thông tin sản phẩm
Bình luận

Product Advantages

Oil & Air separator

Bigger oil and air separator and oil separator element, improving the initial separation efficiency, making the oil content less than or equal to 3ppm.

Oil filter

Oil filter fitness is 25um, which can effectively guarantee the clean lubricating oil supply to the main system and improve the service life of the air end.

Controller

Control screw compressor's start and stop, pressure, temperature, over current alarm, fault alarm, maintain warning and other functions precisely.

Cooling fan

High efficiency and large air volume, greatly lower the temperature and prelong the lubricating oil change period.

Air tank

Compressor with air tank combined, the exhaust from the compressor is directly discharged to the tank, which reduces the intermediate connecting pipe and effectively saves space.

Product Parameter

TSPT – TSPTD SERIES TECHNICAL SPECIFICATION
Model	Power		Pressure	Capacity	Dimensions	Weight	Outlet Pipe	Noise Level	Pressure
Model	KW	HP	bar	M3/min	(LxWxH) mm	Kg	Diameter	dB	bar
TFST7.5A	5.5	7.5	7	0.90	1230x600x1530	300	G3/4	65	300
			8	0.80
			10	0.70
TFST10A	7.5	10	7	1.05	1230x600x1530	300	G3/4	65	300
			8	1.10
			10	1.00
TFST15A	11	15	7	1.68	1550x820x1780	350	G3/4	65	300
			8	1.60
			10	1.45
TFST20A	15	20	7	2.50	1550x820x1780	350	G3/4	65	300
			8	2.30
			10	2.00
WITH AIR TANK, DRYER AND FILTER
TFSTD7.5A	5.5	7.5	7	0.90	1725x660x1625	380	G3/4	65	200/500
			8	0.80
			10	0.70
TFSTD10A	7.5	10	7	1.05	1725x660x1625	380	G3/4	65	200/500
			8	1.10
			10	1.00
TFSTD15A	11	15	7	1.68	1880x820x1940	505	G3/4	65	500
			8	1.60
			10	1.45
TFSTD20A	15	20	7	2.50	1880x820x1940	505	G3/4	65	500
			8	2.30
			10	2.00
TFSTD30A	22	30	7	3.52	2100x750x1950	650	G1	75	600
			8	3.36
			10	3.06

The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
Recommend frquency 30%-100%.
The above data is based on the standard grid- 380V/ 50HZ.
Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
