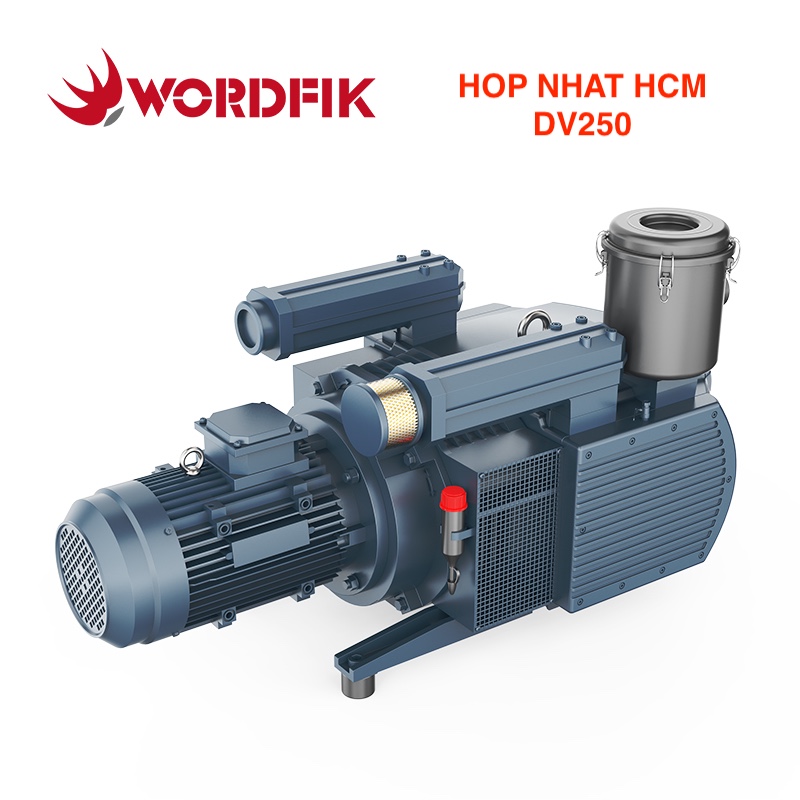

⚙️ TD SERIES DRY ROTARY VANE COMPRESSORS
Clean, Oil-Free, Low-Pressure Air Solution
🔷 Product Overview
The TD Series is a range of dry rotary vane compressors designed to provide a clean, stable, and continuous positive-pressure air supply for industrial machinery and production lines.
The compressor uses an eccentrically mounted rotor combined with self-lubricating graphite vanes to draw in, compress, and discharge air without lubricating oil inside the compression chamber.
📌 Key Specifications
-
Flow rate: 10–168 m³/h
-
Operating pressure: +1,000 to +1,500 mbar
-
Motor power: 0.37–9 kW
-
Frequency: 50 Hz or 60 Hz
-
Noise level: 62–82 dB
-
Inlet connection: ½ inch to 1½ inches
The TD Series is suitable for applications requiring a stable airflow at low positive pressure. It is not intended to replace conventional industrial air compressors operating at 7–10 bar.
🔄 Operating Principle
As the rotor rotates, the graphite vanes slide inside the rotor slots and remain in contact with the inner surface of the compression chamber. This creates a series of air chambers whose volumes continuously change.
The compression process consists of three stages:
➡️ Air intake: Air enters the compressor as the chamber volume increases.
➡️ Compression: The chamber volume decreases, causing the air pressure to rise.
➡️ Discharge: The compressed air is delivered through the outlet to the connected equipment.
The entire process is carried out 100% oil-free, reducing the risk of oil contamination in products, equipment, and the working environment.
✅ Key Advantages
-
💧 100% oil-free compression chamber
-
🌿 Clean air without oil mist contamination
-
🔧 Simple construction and minimal maintenance
-
📐 Compact design for easy machine integration
-
⚡ Stable and continuous operation
-
💰 Reduced costs for oil, oil filters, and oil separators
-
🕒 Long service life with proper maintenance
🏭 Industrial Applications
🖨️ Printing and Paper Industry
Used for sheet separation, paper feeding, surface drying, paper handling, folding, stacking, and pneumatic conveying in printing and paper-processing machinery.
🪵 CNC Routers and Woodworking
Suitable for surface cleaning, sawdust removal, material positioning, air-cushion tables, and integration into CNC routers and automated woodworking equipment.
🌱 Environmental Industry
Applied in sampling systems, analytical equipment, small wastewater aeration systems, low-pressure air supply, and environmental monitoring systems.
⚙️ Mechanical Engineering and Automation
Used in packaging machines, sorting systems, feeding equipment, testing devices, product conveying systems, and component cleaning applications.
🩺 Medical and Laboratory Equipment
Can be integrated into analytical instruments, sampling equipment, and systems requiring clean, oil-free air at low pressure.
💻 Electronics and Semiconductor Industry
Provides clean air for electronic component testing, pick-and-place systems, circuit-board cleaning, semiconductor handling, and automated production lines.
📊 TD Series Technical Specifications
| Model |
Flow Rate at 50 Hz |
Flow Rate at 60 Hz |
Pressure |
Motor Power at 50/60 Hz |
| TD10 |
10 m³/h |
12 m³/h |
+1,000 mbar |
0.37/0.44 kW |
| TD16K |
16 m³/h |
19.2 m³/h |
+1,000 mbar |
0.75/0.9 kW |
| TD25K |
25 m³/h |
30 m³/h |
+1,000 mbar |
1.25/1.5 kW |
| TD40K |
40 m³/h |
48 m³/h |
+1,000 mbar |
1.85/2.2 kW |
| KTD60 |
60 m³/h |
72 m³/h |
+1,500 mbar |
3/3.6 kW |
| KTD80 |
80 m³/h |
96 m³/h |
+1,500 mbar |
4/4.8 kW |
| KTD100 |
100 m³/h |
120 m³/h |
+1,500 mbar |
5.5/6.6 kW |
| KTD140 |
140 m³/h |
168 m³/h |
+1,500 mbar |
7.5/9 kW |
🛠️ HOP NHAT HCM – Clean Air Equipment Solutions for Industry
Hop Nhat HCM Air Compressor Company supplies TD Series dry rotary vane compressors together with comprehensive technical services:
✔️ Model selection based on required flow rate and pressure
✔️ Supply of compressors and graphite vane spare parts
✔️ Installation, maintenance, and repair services
✔️ Technical support for integration into machinery and automated production lines
📞 Contact Hop Nhat HCM Air Compressor Company for professional consultation and a suitable solution based on your actual operating requirements.
