  • Máy Tạo Khí Nitơ AAG - EU / Twin Towers Series
Máy Tạo Khí Nitơ AAG - EU / Twin Towers Series

Máy Tạo Khí Nitơ AAG - EU / Twin Towers Series

Hãng sản xuất: AAG

Máy Sản Xuất Khí NiTơ dạng PSA (Tháp Đôi)
Model: NİTROPAK xxx
Độ thuần khiết khí Ni tơ:  95% - 99% - 99.5% - 99.9% - 99.99% - 99.999%
Lưu lượng N2:                  640  ----- 0.18 m3/h
Nhiệt độ điểm sương: - 40o C
Giá tham khào: Call 0989 508 177
Hãng sản xuất: AAG - EU

TWIN TOWERS SERIES
Reliable and Economic N2 production with PSA technology to 99,999% pureness.

AAG Nitrogen Generator Unit is designed to amortize your investment by saving from the nitrogen consumption.

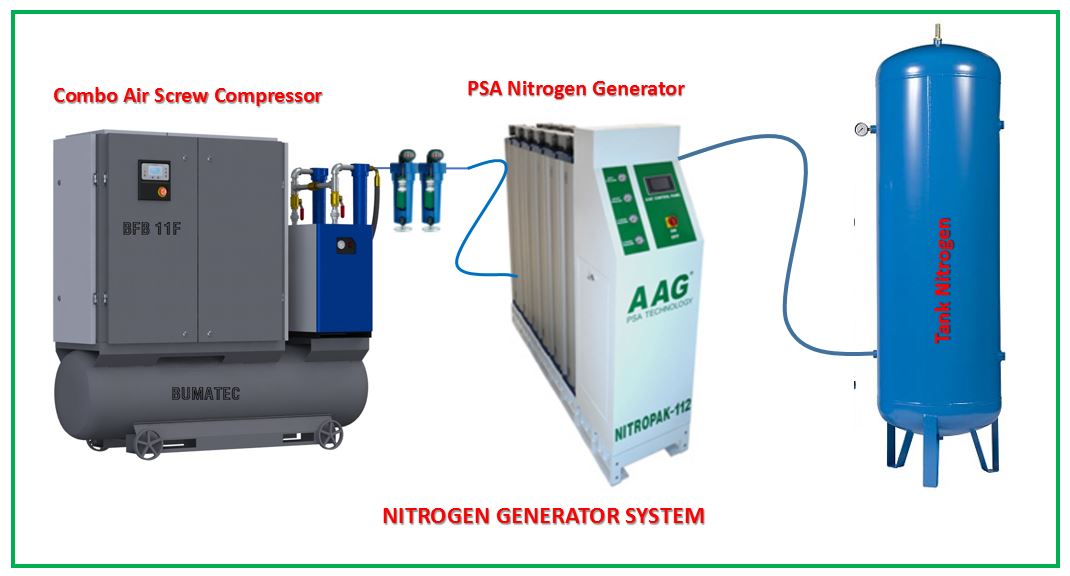

It ıs designed to be installed easily in every indoor place. It only requires compressed air line and power source.

There is a variety of field in Nitrogen Industry and Aplications. FOOD,MEDICINE INDURTY,PACKAGING, AUTOMOTIVE, LASER CUT, ELECTRONICS, PETRO CHEMICAL, PLASTIC INJECTIONS, COOLING, CHEMICAL, DYEING, COSMETIC ARE THE MAIN SECTORS.

Generator if desired, Medical Kit, Food pack filter kit, Remote GSM Control, Nitrogen Analyzer can be added as optional functions.

Touchscreen LCD control panel supply ease of use by specs.

MODEL DIMENSIONS OF NITROGEN GENERATORS NİTROPAK

MODEL

Weight (kg)

Dimensions
I x d x h (cm)

Particle content
(
μm)

Inlet Air Pressure
( BARg)

N2 Output Pressure
(BARg)

Power

NİTROPAK 5

45

250X750X801

0.01

6 to 11

5 to 10

220-240 VAC/ 50 Hz – 20W

NİTROPAK 10

56

250X750X1200

0.01

6 to 11

5 to 10

  110-240 VAC/ 50 Hz – 20W

NİTROPAK 15

90

250X750X1400

0.01

6 to 11

5 to 10

  110-240 VAC/ 50 Hz – 20W

NİTROPAK 20

200

370X1000X1090

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 100W

NİTROPAK 30

270

370X1000X1090

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 100W

NİTROPAK 213

740

750X750X2500

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 150W

NİTROPAK 226

950

800X1060X2500

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 150W

NİTROPAK 239

1850

900X1270X2500

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 200W

NİTROPAK 252

2000

1000X1400X2500

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 200W

NİTROPAK 265

2150

1000X1600X2500

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 200W

NİTROPAK 278

2600

1000X1800X2500

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 200W

NİTROPAK 291

3200

1000X1900X3000

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 200W

NİTROPAK 304

3600

1200X2000X3000

0.01

6 to 11

5 to 10

110-240 VAC/ 50 Hz – 200W


MINIMUM NITROGEN OUTPUT FLOW WITH COMPRESSED AIR INLET PRESSURE OF 8.0 BAR (Q)

Pin : 8 bar

N2 flow

(Nm3/h)



MODEL

%95

%96

%97

%98

%99

%99.5

%99.9

%99,95

%99.99

%99.999

NITROPAK 5

2.08

1.84

1.60

1.38

1.14

0.90

0.60

0.48

0.31

0.18

NITROPAK 10

4.4

3.9

3.4

2.9

2.4

1.9

1.29

1.0

0.7

0.4

NITROPAK 15

6,7

5.9

5.1

4.4

3.7

2.9

1.9

1.5

1.0

0.6

NITROPAK 20

10.1

8.9

7.8

6.7

5.72

4.4

2.8

2.4

1.6

0.7

NITROPAK 30

15.6

13.8

12

10.4

8.8

6.8

4.4

3.7

2.6

1.1

NITROPAK 50

26.0

23.0

20.0

17.3

14.6

11.4

7.3

6.1

4.3

1.9

NITROPAK 100

52.0

46.0

40.0

35.4

29.3

23.2

14.0

12.7

8.4

5.1

NITROPAK 130

96.2

82.8

68.0

53.3

40.6

33.6

23.0

18.2

12.0

7.8

NITROPAK 250

113.8

100.7

87.5

75.6

64.1

49.9

32.0

27.4

18.2

7.1

NITROPAK 400

199.3

176.3

153.3

132.4

112.2

87.5

56.1

48.1

32.0

12.4

NITROPAK 650

299.0

264.5

230.0

198.6

168.3

131.2

84.1

72.1

48.0

18.6

NITROPAK 800

355.6

314.5

273.5

236.2

200.2

156.1

100.0

85.7

57.0

22.1

NITROPAK 1000

460.9

407.7

354.5

306.2

259.5

202.3

129.6

111.1

73.9

28.7

NITROPAK 1250

553.1

489.3

425.5

367.4

311.4

242.8

155.5

133.4

88.7

34.4
