Hạt CMS - Carbon Molecular Sieve (China)

Hãng sản xuất: Gophinchem

Mã số: CMS-260

Model máy: CMS-260

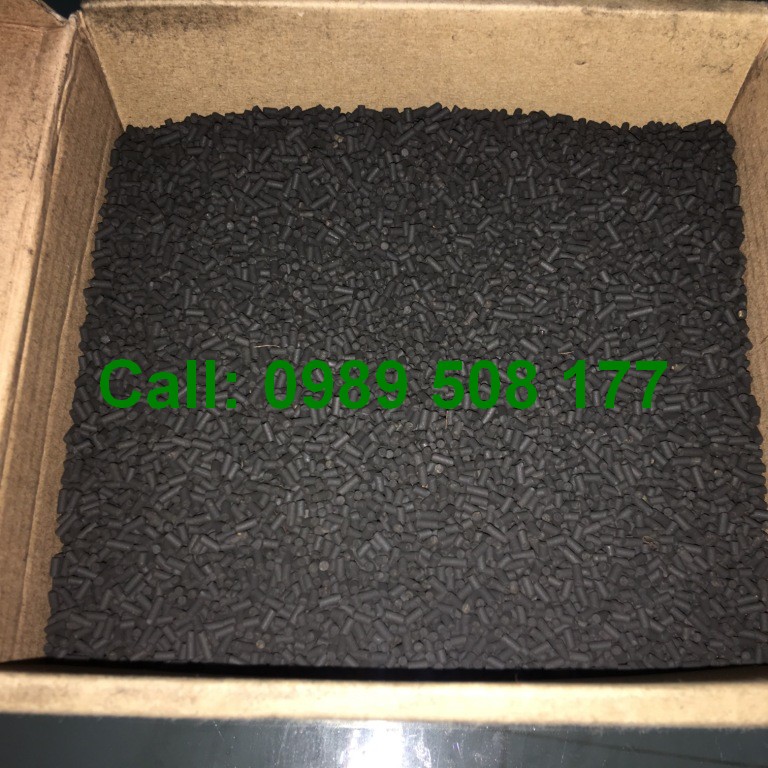

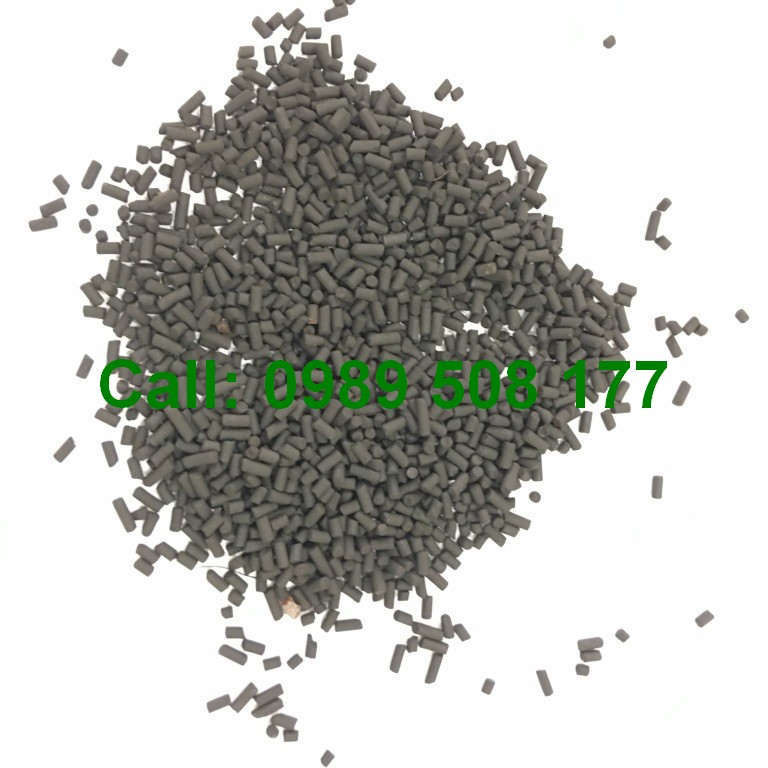

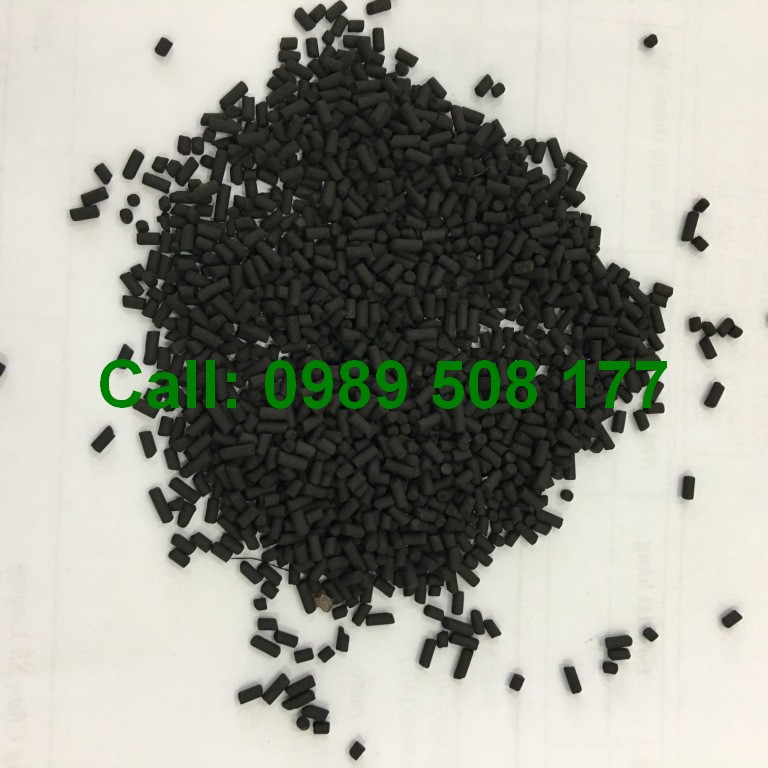

Hạt CMS (Carbon Molecular Sieve) chuyên dùng cho máy tạo khí Nito dạng PSA,
CMS là một vật liệu có chứa các lỗ nhỏ xíu có kích thước chính xác và đồng nhất được sử dụng làm chất hấp phụ cho khí.
Có những yêu cầu kỹ thuật khác nên có những Model sau: CMS-200, CMS-220, CMS-240, CMS-260
Kích thước : 1.3~1.8mm

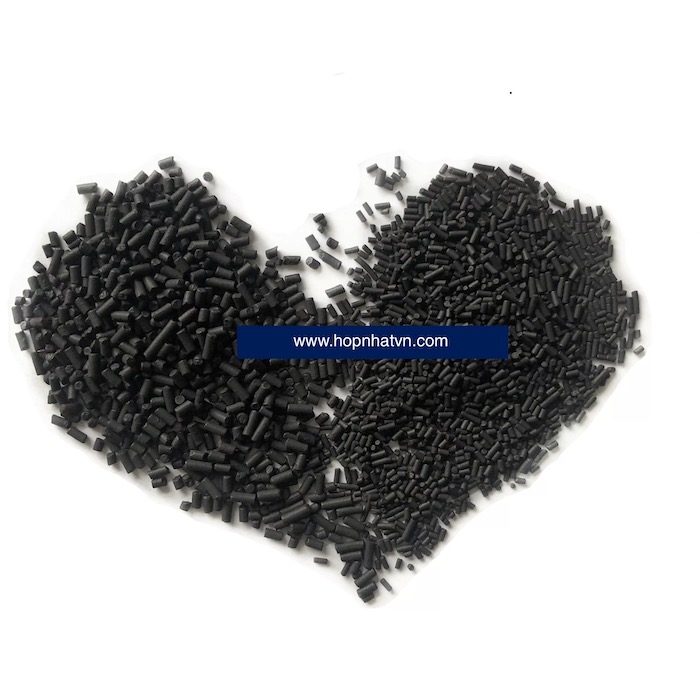

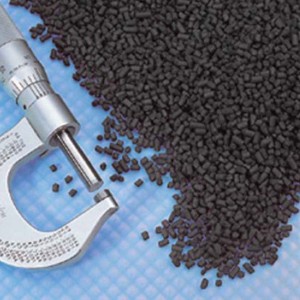

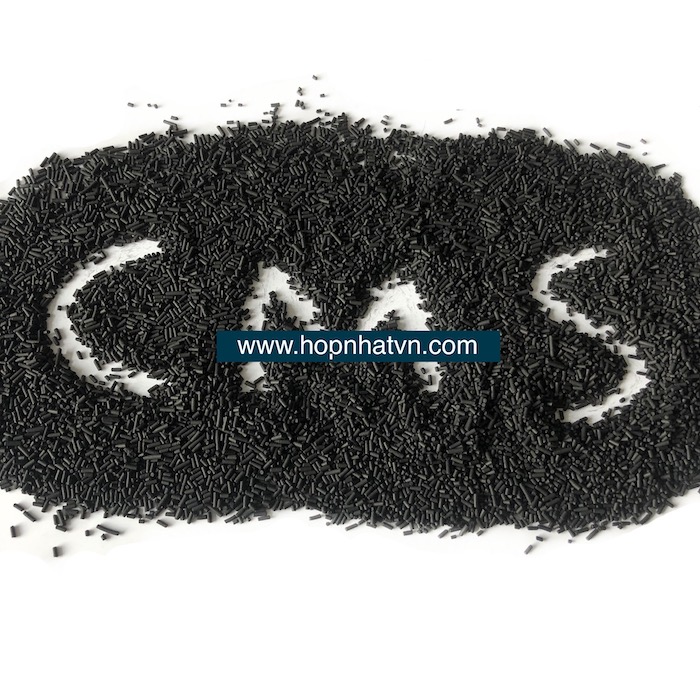

Carbon Molecular Sieve

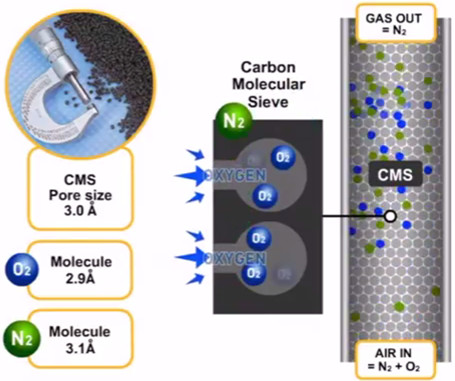

Carbon molecular sieve is a type of porous material that is composed of accumulated carbon element.The structure of its

internal micropores hava a characteristic of selective adsorption to oxygen molecules,so that it is used as adsorbent for

the separation of nitrogen and oxygen.Use arbon molecular sieve as adsorbent for nitrogen separation also is known as

psa nitrogen generation. Since it take a series of advantages,low invest,low cost,speed running and flexible adjust of

nitrogen purity.Therefore it is widely used in the fileds of coal mine,petrolium,chemicals,metal heat-treatment,

electronics production and food fresh preservation.


Carbon molecular sieve classfied in three types according to the

differences of raw materials.

1-) Carbon molecular sieve 100% made from coconut shell

2-) Carbon molecular sieve made from blending of coconut shell

and phenonic.

3-) Carbon molecular sieve 100% made from phenonic resin

Above carbon molecular sieves performance is similar,the main

difference is that carbon molecular sieve made from

coconut shell well meet the requirement of enviromental protection

in the process of nitrogen generation.

Hotek Chemical Technology Co.,Ltd. would like to guarantee all its supplied carbon molecular sieves are 100% made from

coconut shell to response for the calling of global enviromental protection.

In order to well meet its applications in various fields,Hotek produced carbon molecular sieves is divide into three

performance levels according to its nitrogen generation capability

+ Basic Performance CMS              (Particle Diameter) 1.3~1.8mm              CMS230                    Ask for Technical Data

+ Medium Performance CMS          (Particle Diameter) 1.3~1.8mm              CMS240                    Ask for Technical Data

+ Medium Performance CMS          (Particle Diameter) 1.3~1.8mm              CMS260                    Ask for Technical Data

+ High Performance CMS               (Particle Diameter)  1.0.-1.1mm              CMS280                    Ask for Technical Data

SPECIFICATION

Diameter

1.0-1.3mm

Bulk Density

670-690g/l

Adsorption Rate

2*50s

Crush Strength

≥100N

Type

Adsorbent pressure

Purity of Nitrogen

Rate of Nitrogen Prodution

Nitrogen Recovery Rate

N2 (%)

(Mpa)

N2 (%)

N2 (m3/h.t)

CMS-185

0.8

99.99

58

2.1

99.9

115

3.1

99.5

185

4.0

99.0

245

4.5

98.0

300

4.6

97.0

355

4.8

CMS-200

0.8

99.99

80

2.1

99.9

130

3.1

99.5

200

4.0

99

275

4.5

98

325

4.6

97

330

4.8

CMS-220

0.8

99.99

100

2.1

99.9

150

3.1

99.5

220

4.0

99

280

4.5

98

335

4.6

97

350

4.8

CMS-240

0.8

99.99

110

2.1

99.9

170

3.1

99.5

240

4.0

99

305

4.5

98

365

4.6

97

380

4.8

CMS-260

0.8

99.99

120

2.8

99.90

175

3.6

99.50

260

4.6

99.00

320

5.3

+ Long service life,Hotek guarantee 5~8 years service life of its carbon molecular sieve on the basis of proper operation.

+ Enviromental protection,Hotek carbon molecular sieve meet the requiement of enviroment protection since its carbon

molecular sieve is 100% made from coconut shell.

+ Regular size,Hotek carbon molecular sieve particle diameter tolerance could controlled within + 0.02mm.

+ Consistent performance,Hotek carbon molecular sieve of each batches keep condistent performance.

+ Less ash content, Huatai carbon molecular sieve with low ash containment is good for the maintenance of nitrogen

generator as well as the prodcution enviromental protection.
